CNC Feeder Sheet metal Series
◎ Compatible with processing feedstock of various thicknesses and lengths.
◎ Ideal for high-speed feeding and long material processing, boosting production capacity and feeding accuracy.
◎ Equipped with a user-friendly operation panel with numeric keypad, allowing operators to easily set feed length and speed, delivering fast and precise operation. The feed length range covers 0.1mm to 9999.99mm.
◎ Features an air-powered release device with precise positioning, ensuring long service life and low failure rate.
Structure Features
◎ Features a high-quality brushless servo motor drive, which significantly shortens setup, commissioning and testing cycles.
◎ Equipped with a high-sensitivity encoder to ensure precise back-feeding and enhance loading accuracy.
◎ Utilizes a timing belt drive system to maintain gear clearance, delivering low wear, silent operation, maintenance-free operation, safety and eco-friendliness.
◎ Motor is internally mounted to prevent potential damage during transportation and handling.

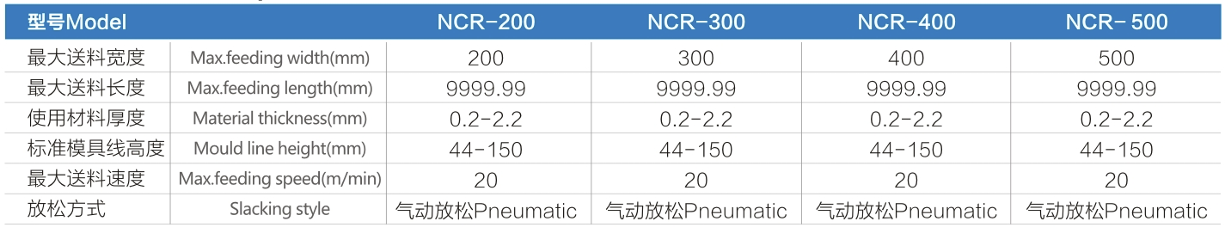

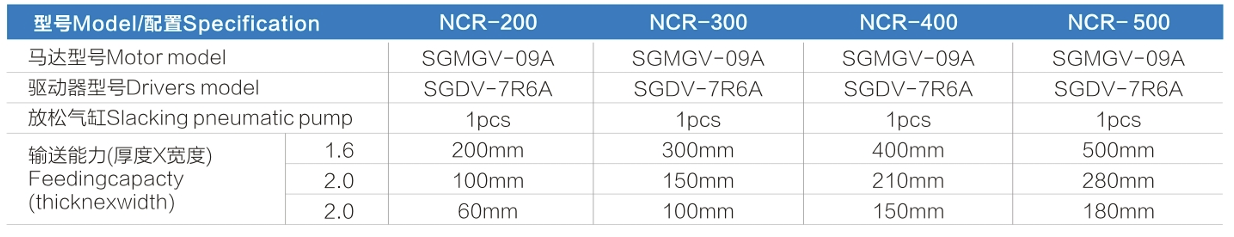

Technical Parameters
